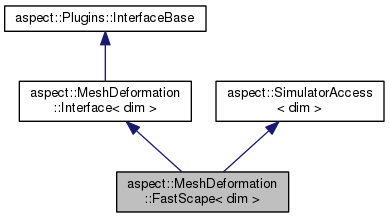

Inheritance diagram for aspect::MeshDeformation::FastScape< dim >:

Public Types
enum	FastscapeOutputVariable { FastscapeOutputVariable::kf, FastscapeOutputVariable::kd, FastscapeOutputVariable::uplift_rate }

Public Member Functions
	~FastScape () override

virtual void	initialize () override

void	update () override

virtual void	compute_velocity_constraints_on_boundary (const DoFHandler< dim > &mesh_deformation_dof_handler, AffineConstraints< double > &mesh_velocity_constraints, const std::set< types::boundary_id > &boundary_ids) const override

double	boundary_composition (const types::boundary_id boundary_indicator, const Point< dim > &position, const unsigned int compositional_field) const override

bool	needs_surface_stabilization () const override

void	parse_parameters (ParameterHandler &prm) override

template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

void	save (std::map< std::string, std::string > &status_strings) const override

void	load (const std::map< std::string, std::string > &status_strings) override

Public Member Functions inherited from aspect::MeshDeformation::Interface< dim >
virtual Tensor< 1, dim >	compute_initial_deformation_on_boundary (const types::boundary_id boundary_indicator, const Point< dim > &position) const

virtual void	compute_initial_deformation_as_constraints (const Mapping< dim > &mapping, const DoFHandler< dim > &mesh_deformation_dof_handler, const types::boundary_id boundary_indicator, AffineConstraints< double > &constraints) const

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const PrescribedDilation::Manager< dim > &	get_prescribed_dilation_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	stokes_A_block_is_symmetric () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free () const

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const StokesSolver::Interface< dim > &	get_stokes_solver () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Public Attributes
FastscapeOutputVariable	additional_output_variable

Private Member Functions
void	set_ghost_nodes (std::vector< double > &elevation, std::vector< double > &velocity_x, std::vector< double > &velocity_y, std::vector< double > &velocity_z, std::vector< double > &bedrock_transport_coefficient_array, const double &fastscape_timestep_in_years, const bool init) const

bool	is_ghost_node (const unsigned int &index, const bool &exclude_boundaries) const

void	fill_fastscape_arrays (std::vector< double > &elevation, std::vector< double > &bedrock_transport_coefficient_array, std::vector< double > &bedrock_river_incision_rate_array, std::vector< double > &velocity_x, std::vector< double > &velocity_y, std::vector< double > &velocity_z, std::vector< std::vector< double >> &temporary_variables) const

std::vector< std::vector< double > >	get_aspect_values () const

void	initialize_fastscape (std::vector< double > &elevation, std::vector< double > &basement, std::vector< double > &silt_fraction, bool restart) const

void	execute_fastscape (std::vector< double > &elevation, std::vector< double > &extra_vtk_field, std::vector< double > &velocity_x, std::vector< double > &velocity_y, std::vector< double > &velocity_z, std::vector< double > &bedrock_transport_coefficient_array, const double &fastscape_timestep_in_years, const unsigned int &fastscape_iterations) const

void	apply_orographic_controls (const std::vector< double > &elevation, std::vector< double > &bedrock_river_incision_rate_array, std::vector< double > &bedrock_transport_coefficient_array) const

Table< dim, double >	fill_data_table (const std::vector< double > &values, const TableIndices< dim > &size_idx, const unsigned int &fastscape_nx, const unsigned int &fastscape_ny) const

Private Attributes
unsigned int	fastscape_steps_per_aspect_step

double	maximum_fastscape_timestep

double	fastscape_dx

double	fastscape_dy

double	fastscape_x_extent

double	fastscape_y_extent

double	fastscape_y_extent_2d

unsigned int	fastscape_nx

unsigned int	fastscape_ny

double	vexp

unsigned int	additional_refinement_levels

unsigned int	maximum_surface_refinement_level

unsigned int	surface_refinement_difference

bool	average_out_of_plane_surface_topography

int	fastscape_seed

std::array< std::pair< double, double >, dim >	grid_extent

std::array< unsigned int, dim >	table_intervals

bool	use_ghost_nodes

double	noise_elevation

std::vector< double >	sediment_rain_rates

std::vector< double >	sediment_rain_times

bool	fastscape_advection_uplift

double	node_tolerance

double	output_interval

double	last_output_time

Fastscape boundary conditions
unsigned int	bottom

unsigned int	top

unsigned int	right

unsigned int	left

bool	topbottom_ghost_nodes_periodic

bool	leftright_ghost_nodes_periodic

unsigned int	fastscape_boundary_conditions

double	bottom_flux

double	top_flux

double	right_flux

double	left_flux

FastScape subaerial erosional parameters
double	drainage_area_exponent_m

double	slope_exponent_n

double	slope_exponent_p

double	bedrock_deposition_g

double	sediment_deposition_g

Functions::ParsedFunction< 2 >	kf_distribution_function

bool	use_kf_distribution_function

double	constant_bedrock_river_incision_rate

double	sediment_river_incision_rate

Functions::ParsedFunction< 2 >	kd_distribution_function

bool	use_kd_distribution_function

double	constant_bedrock_transport_coefficient

double	sediment_transport_coefficient

Fastscape marine parameters
double	sea_level_constant_value

Functions::ParsedFunction< 1 >	sea_level_function

bool	use_sea_level_function

bool	use_fixed_erosional_base

double	h_erosional_base

double	sand_surface_porosity

double	silt_surface_porosity

double	sand_efold_depth

double	silt_efold_depth

double	incoming_silt_fraction

double	sand_silt_averaging_depth

double	sand_transport_coefficient

double	silt_transport_coefficient

bool	use_marine_component

Orographic parameters
int	flat_elevation

int	wind_barrier_elevation

unsigned int	wind_direction

double	flat_erosional_factor

double	wind_barrier_erosional_factor

bool	stack_controls

bool	use_orographic_controls

Detailed Description

template<int dim>
class aspect::MeshDeformation::FastScape< dim >

A plugin that utilizes the landscape evolution code FastScape to deform the ASPECT boundary through advection, uplift, hillslope diffusion, sediment deposition, marine diffusion, and the stream power law, which describes river incision.

Definition at line 42 of file fastscape.h.

Member Enumeration Documentation

§ FastscapeOutputVariable

template<int dim>

enum aspect::MeshDeformation::FastScape::FastscapeOutputVariable

strong

Enumeration for selecting which type of additional output to use in Fastscape vtk. Select between Fastscape variables.

Enumerator
kf
kd
uplift_rate

Definition at line 105 of file fastscape.h.

Constructor & Destructor Documentation

§ ~FastScape()

template<int dim>

aspect::MeshDeformation::FastScape< dim >::~FastScape ( )

override

Destructor for FastScape.

Member Function Documentation

§ initialize()

template<int dim>

virtual void aspect::MeshDeformation::FastScape< dim >::initialize ( )

overridevirtual

Initialize variables for FastScape.

Reimplemented from aspect::Plugins::InterfaceBase.

§ update()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::update ( )

overridevirtual

Update input variables for FastScape.

Reimplemented from aspect::Plugins::InterfaceBase.

§ compute_velocity_constraints_on_boundary()

template<int dim>

virtual void aspect::MeshDeformation::FastScape< dim >::compute_velocity_constraints_on_boundary	(	const DoFHandler< dim > &	mesh_deformation_dof_handler,
		AffineConstraints< double > &	mesh_velocity_constraints,
		const std::set< types::boundary_id > &	boundary_ids
	)		const

overridevirtual

A function that creates constraints for the velocity of certain mesh vertices (e.g. the surface vertices) for a specific boundary. The calling class will respect these constraints when computing the new vertex positions.

Reimplemented from aspect::MeshDeformation::Interface< dim >.

§ boundary_composition()

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::boundary_composition	(	const types::boundary_id	boundary_indicator,
		const Point< dim > &	position,
		const unsigned int	compositional_field
	)		const

overridevirtual

This function returns the compositional field value at the requested point on the requested boundary. If the fastscape plugin cannot provide a boundary condition for a field (e.g. for a field storing viscoelastic stresses), a value of zero is returned.

Return the composition that is to hold at a particular position on the boundary of the domain.

Parameters

boundary_indicator	The boundary indicator of the part of the boundary of the domain on which the point is located at which we are requesting the composition.
position	The position of the point at which we ask for the composition.
compositional_field	The index of the compositional field between 0 and `parameters.n_compositional_fields`.

Returns: Boundary value of the compositional field compositional_field at the position position.

Reimplemented from aspect::MeshDeformation::Interface< dim >.

§ needs_surface_stabilization()

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::needs_surface_stabilization ( ) const

overridevirtual

Returns whether or not the plugin requires surface stabilization

Reimplemented from aspect::MeshDeformation::Interface< dim >.

§ declare_parameters()

template<int dim>

static void aspect::MeshDeformation::FastScape< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare parameters for the FastScape plugin.

§ parse_parameters()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Parse parameters for the FastScape plugin.

Reimplemented from aspect::Plugins::InterfaceBase.

§ serialize()

template<int dim>

template<class Archive >

void aspect::MeshDeformation::FastScape< dim >::serialize	(	Archive &	ar,
		const unsigned int	version
	)

Serialize the contents of this class as far as they are not read from input parameter files.

§ save()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::save ( std::map< std::string, std::string > & status_strings ) const

overridevirtual

Save the state of this object.

Reimplemented from aspect::Plugins::InterfaceBase.

§ load()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::load ( const std::map< std::string, std::string > & status_strings )

overridevirtual

Restore the state of the object.

Reimplemented from aspect::Plugins::InterfaceBase.

§ set_ghost_nodes()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::set_ghost_nodes	(	std::vector< double > &	elevation,
		std::vector< double > &	velocity_x,
		std::vector< double > &	velocity_y,
		std::vector< double > &	velocity_z,
		std::vector< double > &	bedrock_transport_coefficient_array,
		const double &	fastscape_timestep_in_years,
		const bool	init
	)		const

private

Function used to set the FastScape ghost nodes. FastScape boundaries are not uplifted or periodic for advection and diffusion. By using a layer of extra nodes in the FastScape model, we can avoid seeing FastScape boundary effects within ASPECT. Similarly, we can use these nodes to have fully periodic boundaries, where we check the flow direction and update the FastScape ghost nodes, and the nodes one layer inward (boundary nodes in ASPECT) to match the parameters on the other side (vx, vy, vz, h). This is done every ASPECT timestep before running FastScape.

§ is_ghost_node()

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::is_ghost_node	(	const unsigned int &	index,
		const bool &	exclude_boundaries
	)		const

private

Function to determine whether the current index is a ghost node

§ fill_fastscape_arrays()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::fill_fastscape_arrays	(	std::vector< double > &	elevation,
		std::vector< double > &	bedrock_transport_coefficient_array,
		std::vector< double > &	bedrock_river_incision_rate_array,
		std::vector< double > &	velocity_x,
		std::vector< double > &	velocity_y,
		std::vector< double > &	velocity_z,
		std::vector< std::vector< double >> &	temporary_variables
	)		const

private

Function to fill the Fastscape arrays (height and velocities) with the data received from ASPECT in the correct index order.

§ get_aspect_values()

template<int dim>

std::vector<std::vector<double> > aspect::MeshDeformation::FastScape< dim >::get_aspect_values ( ) const

private

Function to get the ASPECT topography and velocities at the surface, and an index for transferring these to FastScape.

§ initialize_fastscape()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::initialize_fastscape	(	std::vector< double > &	elevation,
		std::vector< double > &	basement,
		std::vector< double > &	silt_fraction,
		bool	restart
	)		const

private

Function to initialize or restart FastScape

§ execute_fastscape()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::execute_fastscape	(	std::vector< double > &	elevation,
		std::vector< double > &	extra_vtk_field,
		std::vector< double > &	velocity_x,
		std::vector< double > &	velocity_y,
		std::vector< double > &	velocity_z,
		std::vector< double > &	bedrock_transport_coefficient_array,
		const double &	fastscape_timestep_in_years,
		const unsigned int &	fastscape_iterations
	)		const

private

Execute FastScape

§ apply_orographic_controls()

template<int dim>

void aspect::MeshDeformation::FastScape< dim >::apply_orographic_controls	(	const std::vector< double > &	elevation,
		std::vector< double > &	bedrock_river_incision_rate_array,
		std::vector< double > &	bedrock_transport_coefficient_array
	)		const

private

Function to apply orographic (mountain related, e.g., wind or elevation) controls to the FastScape model.

§ fill_data_table()

template<int dim>

Table<dim,double> aspect::MeshDeformation::FastScape< dim >::fill_data_table	(	const std::vector< double > &	values,
		const TableIndices< dim > &	size_idx,
		const unsigned int &	fastscape_nx,
		const unsigned int &	fastscape_ny
	)		const

private

Fill velocity data table to be interpolated back onto the ASPECT mesh.

Member Data Documentation

§ additional_output_variable

template<int dim>

FastscapeOutputVariable aspect::MeshDeformation::FastScape< dim >::additional_output_variable

Definition at line 112 of file fastscape.h.

§ fastscape_steps_per_aspect_step

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::fastscape_steps_per_aspect_step

private

Suggestion for the number of FastScape steps to run for every ASPECT timestep, where the FastScape timestep is determined by ASPECT_timestep_length divided by this parameter.

This variable is read from the parameter file through a parameter called 'Number of fastscape timesteps per aspect timestep'.

Definition at line 215 of file fastscape.h.

§ maximum_fastscape_timestep

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::maximum_fastscape_timestep

private

Maximum timestep allowed for FastScape, if the suggested timestep exceeds this limit it is repeatedly divided by 2 until the final timestep is smaller than this parameter. This variable is read from the parameter file through a parameter called 'Maximum timestep length'.

Definition at line 222 of file fastscape.h.

§ fastscape_dx

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::fastscape_dx

private

FastScape cell size in X.

Definition at line 227 of file fastscape.h.

§ fastscape_dy

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::fastscape_dy

private

FastScape cell size in Y.

Definition at line 232 of file fastscape.h.

§ fastscape_x_extent

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::fastscape_x_extent

private

FastScape X extent (ASPECT X extent + 2*dx for ghost nodes).

Definition at line 237 of file fastscape.h.

§ fastscape_y_extent

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::fastscape_y_extent

private

Fastscape Y extent (ASPECT Y extent + 2*dy for ghost nodes).

Definition at line 242 of file fastscape.h.

§ fastscape_y_extent_2d

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::fastscape_y_extent_2d

private

User set FastScape Y extent for a 2D ASPECT model. This variable is read from the parameter file through a parameter called 'Y extent in 2d'.

Definition at line 248 of file fastscape.h.

§ fastscape_nx

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::fastscape_nx

private

Number of x points in FastScape array.

Definition at line 253 of file fastscape.h.

§ fastscape_ny

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::fastscape_ny

private

Number of y points in FastScape array.

Definition at line 258 of file fastscape.h.

§ vexp

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::vexp

private

Vertical exaggeration in FastScape visualization. This variable is read from the parameter file through a parameter called 'Vertical exaggeration'.

Definition at line 264 of file fastscape.h.

§ additional_refinement_levels

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::additional_refinement_levels

private

How many levels FastScape should be refined above the maximum ASPECT surface resolution. This variable is read from the parameter file through a parameter called 'Additional fastscape refinement'.

Definition at line 270 of file fastscape.h.

§ maximum_surface_refinement_level

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::maximum_surface_refinement_level

private

Maximum expected refinement level at ASPECT's surface. This and resolution_difference are required to properly transfer node data from ASPECT to FastScape. This variable is read from the parameter file through a parameter called 'Maximum surface refinement level'.

Definition at line 278 of file fastscape.h.

§ surface_refinement_difference

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::surface_refinement_difference

private

Difference in refinement levels expected at the ASPECT surface, where this would be set to 2 if 3 refinement levels are set at the surface. This and surface_resolution are required to properly transfer node data from ASPECT to FastScape.

TODO: Should this be kept this way, or make it so the input is the expected levels of refinement at the surface, and we can subtract one within the code? Also, it would be good to find a way to check these are correct, because they are a common source of errors. This variable is read from the parameter file through a parameter called 'Surface refinement difference'.

Definition at line 292 of file fastscape.h.

§ average_out_of_plane_surface_topography

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::average_out_of_plane_surface_topography

private

If set to true, the FastScape surface is averaged along Y and returned to ASPECT. If set to false, the center slice of the FastScape model is returned to ASPECT. This variable is read from the parameter file through a parameter called 'Average out of plane surface topography in 2d'.

Definition at line 300 of file fastscape.h.

§ fastscape_seed

template<int dim>

int aspect::MeshDeformation::FastScape< dim >::fastscape_seed

private

Seed number for initial topography noise in FastScape. This variable is read from the parameter file through a parameter called 'Fastscape seed'.

Definition at line 306 of file fastscape.h.

§ grid_extent

template<int dim>

std::array<std::pair<double,double>,dim> aspect::MeshDeformation::FastScape< dim >::grid_extent

private

Variable to hold ASPECT domain extents.

Definition at line 311 of file fastscape.h.

§ table_intervals

template<int dim>

std::array<unsigned int, dim> aspect::MeshDeformation::FastScape< dim >::table_intervals

private

Table for interpolating FastScape surface velocities back to ASPECT.

Definition at line 316 of file fastscape.h.

§ use_ghost_nodes

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_ghost_nodes

private

Whether or not to use the ghost nodes. This variable is read from the parameter file through a parameter called 'Use ghost nodes'.

Definition at line 322 of file fastscape.h.

§ noise_elevation

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::noise_elevation

private

Magnitude (m) of the initial noise applied to FastScape. Applied as either a + or - value to the topography such that the total difference can be up to 2*noise_elevation. This variable is read from the parameter file through a parameter called 'Initial noise magnitude'.

Definition at line 330 of file fastscape.h.

§ sediment_rain_rates

template<int dim>

std::vector<double> aspect::MeshDeformation::FastScape< dim >::sediment_rain_rates

private

Sediment rain in m/yr, added as a flat increase to the FastScape surface in the marine domain every ASPECT timestep before running FastScape. This variable is read from the parameter file through a parameter called 'Sediment rain rates'.

Definition at line 337 of file fastscape.h.

§ sediment_rain_times

template<int dim>

std::vector<double> aspect::MeshDeformation::FastScape< dim >::sediment_rain_times

private

Time at which each interval of sediment_rain_rates is active. Should contain one less value than sediment_rain_rates, assuming that sediment_rain_rates[0] is applied from model time 0 until sediment_rain_times[0]. This variable is read from the parameter file through a parameter called 'Sediment rain time intervals'.

Definition at line 345 of file fastscape.h.

§ fastscape_advection_uplift

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::fastscape_advection_uplift

private

Flag for having FastScape advect/uplift the surface. If the free surface is used in conjunction with FastScape, this can be set to false, then FastScape will only apply erosion/deposition to the surface and not advect or uplift it. This variable is read from the parameter file through a parameter called 'Uplift and advect with fastscape'.

Definition at line 353 of file fastscape.h.

§ node_tolerance

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::node_tolerance

private

Node tolerance for how close a ASPECT node must be to the FastScape node for the value to be transferred. This is only necessary if use_v is set to 0 and the free surface is used to advect the surface with a normal projection, or if there is a surface refinement level difference leading to excess interpolation points in areas of high ASPECT resolution. This variable is read from the parameter file through a parameter called 'Node tolerance'.

Definition at line 363 of file fastscape.h.

§ output_interval

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::output_interval

private

Interval between the generation of graphical output. This parameter is read from the input file and consequently is not part of the state that needs to be saved and restored. This variable is read from the parameter file through a parameter called 'Time between graphical output'.

Definition at line 371 of file fastscape.h.

§ last_output_time

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::last_output_time

mutableprivate

A time (in seconds) at which the last graphical output was supposed to be produced. Used to check for the next necessary output time.

Definition at line 377 of file fastscape.h.

§ bottom

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::bottom

private

FastScape bottom boundary condition that determines topography at the FastScape bottom boundary. Where 1 represents a fixed height boundary (though this can still be uplifted through uplift velocities), and 0 a reflective boundary. When two opposing boundaries are reflective (e.g., top and bottom are both zero), then the boundaries become cyclic. This variable is read from the parameter file through a parameter called 'Front'.

Definition at line 391 of file fastscape.h.

§ top

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::top

private

FastScape top boundary condition that determines topography at the FastScape top boundary. Where 1 represents a fixed height boundary (though this can still be uplifted through uplift velocities), and 0 a reflective boundary. When two opposing boundaries are reflective (e.g., top and bottom are both zero), then the boundaries become cyclic. This variable is read from the parameter file through a parameter called 'Back'.

Definition at line 400 of file fastscape.h.

§ right

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::right

private

FastScape right boundary condition that determines topography at the FastScape right boundary. Where 1 represents a fixed height boundary (though this can still be uplifted through uplift velocities), and 0 a reflective boundary. When two opposing boundaries are reflective (e.g., left and right are both zero), then the boundaries become cyclic. This variable is read from the parameter file through a parameter called 'Right'.

Definition at line 409 of file fastscape.h.

§ left

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::left

private

FastScape left boundary condition that determines topography at the FastScape left boundary. Where 1 represents a fixed height boundary (though this can still be uplifted through uplift velocities), and 0 a reflective boundary. When two opposing boundaries are reflective (e.g., left and right are both zero), then the boundaries become cyclic. This variable is read from the parameter file through a parameter called 'Left'.

Definition at line 418 of file fastscape.h.

§ topbottom_ghost_nodes_periodic

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::topbottom_ghost_nodes_periodic

private

Whether the FastScape front and back boundaries are periodic even though the ghost nodes are set to 'fixed'. This variable is read from the parameter file through a parameter called 'Back front ghost nodes periodic'.

Definition at line 426 of file fastscape.h.

§ leftright_ghost_nodes_periodic

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::leftright_ghost_nodes_periodic

private

Whether the FastScape left and right boundaries are periodic even though the ghost nodes are set to 'fixed'. This variable is read from the parameter file through a parameter called 'Left right ghost nodes periodic'.

Definition at line 434 of file fastscape.h.

§ fastscape_boundary_conditions

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::fastscape_boundary_conditions

private

Integer that holds the full boundary conditions sent to FastScape (e.g., 1111).

Definition at line 439 of file fastscape.h.

§ bottom_flux

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::bottom_flux

private

Prescribed flux per unit length into the model through the bottom boundary (m^2/yr). This variable is read from the parameter file through a parameter called 'Front mass flux'.

Definition at line 445 of file fastscape.h.

§ top_flux

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::top_flux

private

Prescribed flux per unit length into the model through the top boundary (m^2/yr). This variable is read from the parameter file through a parameter called 'Back mass flux'.

Definition at line 451 of file fastscape.h.

§ right_flux

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::right_flux

private

Prescribed flux per unit length into the model through the right boundary (m^2/yr). This variable is read from the parameter file through a parameter called 'Right mass flux'.

Definition at line 457 of file fastscape.h.

§ left_flux

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::left_flux

private

Prescribed flux per unit length into the model through the left boundary (m^2/yr). This variable is read from the parameter file through a parameter called 'Left mass flux'.

Definition at line 463 of file fastscape.h.

§ drainage_area_exponent_m

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::drainage_area_exponent_m

private

Drainage area exponent for the stream power law. ( \(m\) variable in FastScape surface equation.) This variable is read from the parameter file through a parameter called 'Drainage area exponent'.

Definition at line 477 of file fastscape.h.

§ slope_exponent_n

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::slope_exponent_n

private

Slope exponent for the stream power law. ( \(n\) variable in FastScape surface equation.) This variable is read from the parameter file through a parameter called 'Slope exponent'.

Definition at line 483 of file fastscape.h.

§ slope_exponent_p

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::slope_exponent_p

private

Slope exponent for multi-direction flow, where 0 is uniform, and 10 is steepest descent. (-1 varies with slope.) ( \(p\) variable in FastScape surface equation.) This variable is read from the parameter file through a parameter called 'Multi-direction slope exponent'.

Definition at line 490 of file fastscape.h.

§ bedrock_deposition_g

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::bedrock_deposition_g

private

Bedrock deposition coefficient. Higher values deposit more sediment inside the domain. ( \(G\) variable in FastScape surface equation.) This variable is read from the parameter file through a parameter called 'Bedrock deposition coefficient'.

Definition at line 497 of file fastscape.h.

§ sediment_deposition_g

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sediment_deposition_g

private

Sediment deposition coefficient. Higher values deposit more sediment inside the domain. When set to -1 this is identical to the bedrock value. ( \(G\) variable in FastScape surface equation applied to sediment.) This variable is read from the parameter file through a parameter called 'Sediment deposition coefficient'.

Definition at line 505 of file fastscape.h.

§ kf_distribution_function

template<int dim>

Functions::ParsedFunction<2> aspect::MeshDeformation::FastScape< dim >::kf_distribution_function

private

Function of bedrock river incision rate (kf) for the stream power law. Represents the parameter kf in the FastScape landscape evolution equation. Units: \({m^(1-2drainage_area_exponent)/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^(1-2drainage_area_exponent)/s}\). Then a time scale factor will be applied to convert it into \({m^(1-2drainage_area_exponent)/yr}\) for Fastscape. This function is used only if use_kf_distribution_function is set to true.

Definition at line 515 of file fastscape.h.

§ use_kf_distribution_function

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_kf_distribution_function

private

Flag to choose if a function of river incision rate for the stream power law will be applied. This variable is read from the parameter file through a parameter called 'Use kf distribution function'.

Definition at line 521 of file fastscape.h.

§ constant_bedrock_river_incision_rate

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::constant_bedrock_river_incision_rate

private

Constant bedrock river incision rate (kf) for the stream power law. Represents the parameter kf in the FastScape landscape evolution equation. Units: \({m^(1-2drainage_area_exponent)/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^(1-2drainage_area_exponent)/s}\). Then a time scale factor will be applied to convert it into \({m^(1-2drainage_area_exponent)/yr}\) for Fastscape. This variable is read from the parameter file through a parameter called 'Bedrock river incision rate'.

Definition at line 531 of file fastscape.h.

§ sediment_river_incision_rate

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sediment_river_incision_rate

private

Sediment river incision rate for the stream power law. Units: \({m^(1-2drainage_area_exponent)/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^(1-2drainage_area_exponent)/s}\). Then a time scale factor will be applied to convert it into \({m^(1-2drainage_area_exponent)/yr}\) for Fastscape. When set to -1 this is identical to the bedrock value. ( \(kf\) variable in FastScape surface equation applied to sediment.) This variable is read from the parameter file through a parameter called 'Sediment river incision rate'.

Definition at line 542 of file fastscape.h.

§ kd_distribution_function

template<int dim>

Functions::ParsedFunction<2> aspect::MeshDeformation::FastScape< dim >::kd_distribution_function

private

Function of bedrock transport coefficient for hillslope diffusion. Represents the parameter kd in the FastScape landscape evolution equation. Units: \({m^2/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^2/s}\). Then a time scale factor will be applied to convert it into \({m^2/yr}\) for Fastscape. This function is used only if use_kd_distribution_function is set to true.

Definition at line 552 of file fastscape.h.

§ use_kd_distribution_function

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_kd_distribution_function

private

Flag for using parsed function vs constant This variable is read from the parameter file through a parameter called 'Use kd distribution function'.

Definition at line 558 of file fastscape.h.

§ constant_bedrock_transport_coefficient

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::constant_bedrock_transport_coefficient

private

Constant bedrock transport coefficient value for hillslope diffusion Units: \({m^2/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^2/s}\). Then a time scale factor will be applied to convert it into \({m^2/yr}\) for Fastscape. This function is only used only if use_kf_distribution_function is false. This variable is read from the parameter file through a parameter called 'Bedrock diffusivity'.

Definition at line 568 of file fastscape.h.

§ sediment_transport_coefficient

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sediment_transport_coefficient

private

Sediment transport coefficient for hillslope diffusion. Units: \({m^2/yr}\) if "Use years instead of seconds in output" is true; otherwise, the units are \({m^2/s}\). Then a time scale factor will be applied to convert it into \({m^2/yr}\) for Fastscape. When set to -1 this is identical to the bedrock value. (kd in FastScape surface equation applied to sediment). This variable is read from the parameter file through a parameter called 'Sediment diffusivity'.

Definition at line 579 of file fastscape.h.

§ sea_level_constant_value

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sea_level_constant_value

private

Fastscape sea level (m), set relative to the ASPECT surface where a sea level of zero will represent the initial maximum unperturbed Y (2D) or Z (3D) extent of the ASPECT domain. A negative value of the sea level means the sea level lies below the initial unperturbed top boundary of the domain. The sea level value can be either constant or a time dependent user-defined function. User defined constant sea level value (m). This variable is read from the parameter file through a parameter called 'Sea level'.

Definition at line 602 of file fastscape.h.

§ sea_level_function

template<int dim>

Functions::ParsedFunction<1> aspect::MeshDeformation::FastScape< dim >::sea_level_function

private

The user defined 1D function of time-dependent sea level.

Definition at line 607 of file fastscape.h.

§ use_sea_level_function

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_sea_level_function

private

Whether to use a function to define sea level. This variable is read from the parameter file through a parameter called 'Use sea level function'.

Definition at line 613 of file fastscape.h.

§ use_fixed_erosional_base

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_fixed_erosional_base

private

Parameters to set an extra erosional base level on the ghost nodes that differs from sea level. This variable is read from the parameter file through a parameter called 'Use a fixed erosional base level'.

Definition at line 620 of file fastscape.h.

§ h_erosional_base

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::h_erosional_base

private

Height of the extra erosional base level. This variable is read from the parameter file through a parameter called 'Erosional base level'.

Definition at line 626 of file fastscape.h.

§ sand_surface_porosity

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sand_surface_porosity

private

Surface porosity for sand. This variable is read from the parameter file through a parameter called 'Sand porosity'.

Definition at line 632 of file fastscape.h.

§ silt_surface_porosity

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::silt_surface_porosity

private

Surface porosity for silt. This variable is read from the parameter file through a parameter called 'Silt porosity'.

Definition at line 638 of file fastscape.h.

§ sand_efold_depth

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sand_efold_depth

private

Sands e-folding depth for exponential porosity law (m). This variable is read from the parameter file through a parameter called 'Sand e-folding depth'.

Definition at line 644 of file fastscape.h.

§ silt_efold_depth

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::silt_efold_depth

private

Silts e-folding depth for exponential porosity law (m). This variable is read from the parameter file through a parameter called 'Silt e-folding depth'.

Definition at line 650 of file fastscape.h.

§ incoming_silt_fraction

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::incoming_silt_fraction

private

Silt fraction of material entering the marine domain. This variable is read from the parameter file through a parameter called 'Silt fraction'.

Definition at line 656 of file fastscape.h.

§ sand_silt_averaging_depth

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sand_silt_averaging_depth

private

Averaging depth/thickness for sand-silt equation (m). This variable is read from the parameter file through a parameter called 'Depth averaging thickness'.

Definition at line 662 of file fastscape.h.

§ sand_transport_coefficient

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::sand_transport_coefficient

private

Sand marine transport coefficient. (marine diffusion, m^2/yr.) This variable is read from the parameter file through a parameter called 'Sand transport coefficient'.

Definition at line 668 of file fastscape.h.

§ silt_transport_coefficient

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::silt_transport_coefficient

private

Silt marine transport coefficient. (marine diffusion, m^2/yr.) This variable is read from the parameter file through a parameter called 'Silt transport coefficient'.

Definition at line 674 of file fastscape.h.

§ use_marine_component

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_marine_component

private

Flag to use the marine component of FastScape. This variable is read from the parameter file through a parameter called 'Use marine component'.

Definition at line 680 of file fastscape.h.

§ flat_elevation

template<int dim>

int aspect::MeshDeformation::FastScape< dim >::flat_elevation

private

Set a flat height (m) after which the flat_erosional_factor is applied to the bedrock river incision rate and transport coefficient. This variable is read from the parameter file through a parameter called 'Orographic elevation control'.

Definition at line 695 of file fastscape.h.

§ wind_barrier_elevation

template<int dim>

int aspect::MeshDeformation::FastScape< dim >::wind_barrier_elevation

private

Set the height (m) after which the model will track the ridge line and based on the wind direction will apply the wind_barrier_erosional_factor to the bedrock river incision rate and transport coefficient. This variable is read from the parameter file through a parameter called 'Orographic wind barrier height'.

Definition at line 703 of file fastscape.h.

§ wind_direction

template<int dim>

unsigned int aspect::MeshDeformation::FastScape< dim >::wind_direction

private

Wind direction for wind_barrier_erosional_factor. This variable is read from the parameter file through a parameter called 'Wind direction'.

Definition at line 709 of file fastscape.h.

§ flat_erosional_factor

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::flat_erosional_factor

private

Factor to multiply the bedrock river incision rate and transport coefficient by depending on them flat_elevation. This variable is read from the parameter file through a parameter called 'Elevation factor'.

Definition at line 716 of file fastscape.h.

§ wind_barrier_erosional_factor

template<int dim>

double aspect::MeshDeformation::FastScape< dim >::wind_barrier_erosional_factor

private

Factor to multiply the bedrock river incision rate and transport coefficient by depending on them wind_barrier_elevation and wind direction. This variable is read from the parameter file through a parameter called 'Wind barrier factor'.

Definition at line 723 of file fastscape.h.

§ stack_controls

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::stack_controls

private

Flag to stack both orographic controls. This variable is read from the parameter file through a parameter called 'Stack orographic controls'.

Definition at line 729 of file fastscape.h.

§ use_orographic_controls

template<int dim>

bool aspect::MeshDeformation::FastScape< dim >::use_orographic_controls

private

Flag to use orographic controls.

This variable is read from the parameter file through a parameter called 'Flag to use orographic controls'.

Definition at line 736 of file fastscape.h.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/mesh_deformation/fastscape.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

template<int dim> class aspect::MeshDeformation::FastScape< dim >

Member Enumeration Documentation

§ FastscapeOutputVariable

Constructor & Destructor Documentation

§ ~FastScape()

Member Function Documentation

§ initialize()

§ update()

§ compute_velocity_constraints_on_boundary()

§ boundary_composition()

§ needs_surface_stabilization()

§ declare_parameters()

§ parse_parameters()

§ serialize()

§ save()

§ load()

§ set_ghost_nodes()

§ is_ghost_node()

§ fill_fastscape_arrays()

§ get_aspect_values()

§ initialize_fastscape()

§ execute_fastscape()

§ apply_orographic_controls()

§ fill_data_table()

Member Data Documentation

§ additional_output_variable

§ fastscape_steps_per_aspect_step

§ maximum_fastscape_timestep

§ fastscape_dx

§ fastscape_dy

§ fastscape_x_extent

§ fastscape_y_extent

§ fastscape_y_extent_2d

§ fastscape_nx

§ fastscape_ny

§ vexp

§ additional_refinement_levels

§ maximum_surface_refinement_level

§ surface_refinement_difference

§ average_out_of_plane_surface_topography

§ fastscape_seed

§ grid_extent

§ table_intervals

§ use_ghost_nodes

§ noise_elevation

§ sediment_rain_rates

§ sediment_rain_times

§ fastscape_advection_uplift

§ node_tolerance

§ output_interval

§ last_output_time

§ bottom

§ top

§ right

§ left

§ topbottom_ghost_nodes_periodic

§ leftright_ghost_nodes_periodic

§ fastscape_boundary_conditions

§ bottom_flux

§ top_flux

§ right_flux

§ left_flux

§ drainage_area_exponent_m

§ slope_exponent_n

§ slope_exponent_p

§ bedrock_deposition_g

§ sediment_deposition_g

§ kf_distribution_function

§ use_kf_distribution_function

§ constant_bedrock_river_incision_rate

§ sediment_river_incision_rate

§ kd_distribution_function

§ use_kd_distribution_function

template<int dim>
class aspect::MeshDeformation::FastScape< dim >
