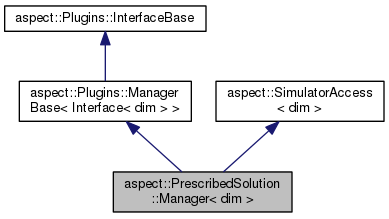

Inheritance diagram for aspect::PrescribedSolution::Manager< dim >:

Public Member Functions
	DeclException1 (ExcPrescribedSolutionNameNotFound, std::string,<< "Could not find entry <"<< arg1<< "> among the names of registered prescribed solution objects.")

void	constrain_solution (AffineConstraints< double > &current_constraints) const

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::ManagerBase< Interface< dim > >
	~ManagerBase () override

void	update () override

bool	has_matching_active_plugin () const

const PluginType &	get_matching_active_plugin () const

const std::list< std::unique_ptr< Interface< dim > > > &	get_active_plugins () const

const std::vector< std::string > &	get_active_plugin_names () const

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()=default

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	register_prescribed_solution_plugin (const std::string &name, const std::string &description, void(declare_parameters_function)(ParameterHandler &), std::unique_ptr< Interface< dim >>(factory_function)())

static void	write_plugin_graph (std::ostream &output_stream)

static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Additional Inherited Members
Protected Attributes inherited from aspect::Plugins::ManagerBase< Interface< dim > >
std::list< std::unique_ptr< Interface< dim > > >	plugin_objects

std::vector< std::string >	plugin_names

Detailed Description

template<int dim>
class aspect::PrescribedSolution::Manager< dim >

A class that manages all prescribed solution objects.

Definition at line 75 of file interface.h.

Member Function Documentation

§ DeclException1()

template<int dim>

aspect::PrescribedSolution::Manager< dim >::DeclException1	(	ExcPrescribedSolutionNameNotFound	,
		std::string
	)

Exception.

§ constrain_solution()

template<int dim>

void aspect::PrescribedSolution::Manager< dim >::constrain_solution ( AffineConstraints< double > & current_constraints ) const

A function that calls the constrain_solution functions of all the individual plugin objects and integrates their return values into the current_constraints object.

§ register_prescribed_solution_plugin()

template<int dim>

static void aspect::PrescribedSolution::Manager< dim >::register_prescribed_solution_plugin	(	const std::string &	name,
		const std::string &	description,
		void(*)(ParameterHandler &)	declare_parameters_function,
		std::unique_ptr< Interface< dim >>(*)()	factory_function
	)

static

A function that is used to register prescribed solution objects in such a way that the Manager can deal with all of them without having to know them by name. This allows the files in which individual plugins are implemented to register these plugins, rather than also having to modify the Manager class by adding the new prescribed solution plugin class.

Parameters

name	A string that identifies the prescribed solution model
description	A text description of what this model does and that will be listed in the documentation of the parameter file.
declare_parameters_function	A pointer to a function that can be used to declare the parameters that this prescribed solution model wants to read from input files.
factory_function	A pointer to a function that can create an object of this prescribed solution model.

§ write_plugin_graph()

template<int dim>

static void aspect::PrescribedSolution::Manager< dim >::write_plugin_graph ( std::ostream & output_stream )

static

For the current plugin subsystem, write a connection graph of all of the plugins we know about, in the format that the programs dot and neato understand. This allows for a visualization of how all of the plugins that ASPECT knows about are interconnected, and connect to other parts of the ASPECT code.

Parameters

output_stream The stream to write the output to.

§ declare_parameters()

template<int dim>

static void aspect::PrescribedSolution::Manager< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters of all known prescribed solution plugins, as well as the ones this class has itself.

§ parse_parameters()

template<int dim>

void aspect::PrescribedSolution::Manager< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file. This determines which prescribed solution objects will be created; then let these objects read their parameters as well.

Reimplemented from aspect::Plugins::InterfaceBase.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/prescribed_solution/interface.h
