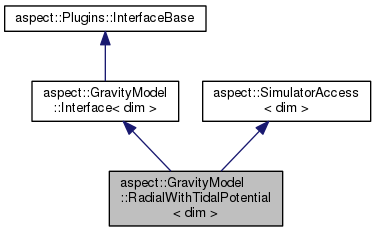

Inheritance diagram for aspect::GravityModel::RadialWithTidalPotential< dim >:

Public Member Functions
Tensor< 1, dim >	gravity_vector (const Point< dim > &position) const override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

virtual void	update ()

virtual void	save (std::map< std::string, std::string > &status_strings) const

virtual void	load (const std::map< std::string, std::string > &status_strings)

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const PrescribedDilation::Manager< dim > &	get_prescribed_dilation_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	stokes_A_block_is_symmetric () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free () const

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const StokesSolver::Interface< dim > &	get_stokes_solver () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Attributes
RadialConstant< dim >	radialconstant

double	M_p

double	a_s

double	P

Detailed Description

template<int dim>
class aspect::GravityModel::RadialWithTidalPotential< dim >

A class that describes gravity as a radial vector of linearly changing magnitude, which is modified by a tidal potential from flattening and non-synchronous rotation (NSR).

The equation implemented in this gravity model is from Tobie et al. (2025) (https://doi.org/10.1007/s11214-025-01136-y), which is defined as: \(\mathbf g = -\text{magnitude} - \nabla (-V_T)\). Tidal potential \(V_T\) is positive because the formula follows conventions from geodesy research, where potential is taken as positive. We use \(V_T = \frac{3 G M_p}{2 a_s^3} r^2 (T_\ast + T_0)\). \(T_\ast = \frac{1}{6} (1-3 \cos(\theta)^2)\) for static flattening of the satellite and \(T_0=\frac{1}{2}\sin(\theta)^2 \cos(2\lambda + 2bt)\) for the quasi-static stretching in the direction of the planet varying in nonsynchronous rotation, where \(G\) is the gravitational constant, \(M_p\) is the mass of the perturbing body, \(a_s\) is the semimajor axis of the orbit, \(b\) is the angular rate of non-synchronous rotation, and \(b = 2 \frac{\pi}{P}\) where \(P\) is the period of NSR. \(r\), \(\theta\) and \(\lambda\) are radial distance, polar angle, and azimuthal angle, respectively.

Definition at line 51 of file radial_with_tidal_potential.h.

Member Function Documentation

§ gravity_vector()

template<int dim>

Tensor<1,dim> aspect::GravityModel::RadialWithTidalPotential< dim >::gravity_vector ( const Point< dim > & position ) const

overridevirtual

Return the gravity vector as a function of position.

Implements aspect::GravityModel::Interface< dim >.

§ declare_parameters()

template<int dim>

static void aspect::GravityModel::RadialWithTidalPotential< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this class takes through input files.

§ parse_parameters()

template<int dim>

void aspect::GravityModel::RadialWithTidalPotential< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

Member Data Documentation

§ radialconstant

template<int dim>

RadialConstant<dim> aspect::GravityModel::RadialWithTidalPotential< dim >::radialconstant

private

The radially constant part of the gravity is handled by an object of type RadialConstant.

Definition at line 76 of file radial_with_tidal_potential.h.

§ M_p

template<int dim>

double aspect::GravityModel::RadialWithTidalPotential< dim >::M_p

private

Mass of the perturbing body. This variable is read from the parameter file through a parameter called 'Mass of perturbing body'.

Definition at line 82 of file radial_with_tidal_potential.h.

§ a_s

template<int dim>

double aspect::GravityModel::RadialWithTidalPotential< dim >::a_s

private

Semimajor axis of the orbit that causes the tidal perturbation. This variable is read from the parameter file through a parameter called 'Semimajor axis of orbit'.

Definition at line 88 of file radial_with_tidal_potential.h.
