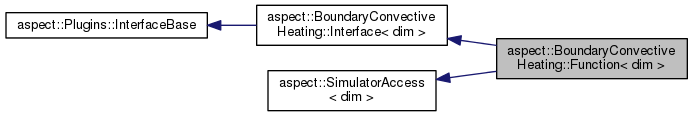

Inheritance diagram for aspect::BoundaryConvectiveHeating::Function< dim >:

Public Member Functions
std::vector< double >	heat_transfer_coefficient (const types::boundary_id boundary_indicator, const MaterialModel::MaterialModelInputs< dim > &material_model_inputs, const MaterialModel::MaterialModelOutputs< dim > &material_model_outputs) const override

void	update () override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()=default

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Attributes
Functions::ParsedFunction< dim >	boundary_convective_heating_function

Utilities::Coordinates::CoordinateSystem	coordinate_system

Detailed Description

template<int dim>
class aspect::BoundaryConvectiveHeating::Function< dim >

A class that implements boundary convective heating (Robin) boundary conditions based on a functional description provided in the input file.

Definition at line 42 of file function.h.

Member Function Documentation

§ heat_transfer_coefficient()

template<int dim>

std::vector<double> aspect::BoundaryConvectiveHeating::Function< dim >::heat_transfer_coefficient	(	const types::boundary_id	boundary_indicator,
		const MaterialModel::MaterialModelInputs< dim > &	material_model_inputs,
		const MaterialModel::MaterialModelOutputs< dim > &	material_model_outputs
	)		const

overridevirtual

Compute the heat transfer coefficients for a list of evaluation points.

Parameters

boundary_indicator	The boundary indicator of the part of the boundary of the domain on which the evaluation points are located and where we are requesting the heat transfer coefficients.
material_model_inputs	The material property inputs.
material_model_outputs	The material property outputs.

Returns: A vector of heat transfer coefficients at the evaluation points.

Implements aspect::BoundaryConvectiveHeating::Interface< dim >.

§ update()

template<int dim>

void aspect::BoundaryConvectiveHeating::Function< dim >::update ( )

overridevirtual

A function that is called at the beginning of each time step to indicate what the model time is for which the boundary values will next be evaluated. For the current class, the function passes to the parsed function what the current time is.

Reimplemented from aspect::Plugins::InterfaceBase.

§ declare_parameters()

template<int dim>

static void aspect::BoundaryConvectiveHeating::Function< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this class takes through input files.

§ parse_parameters()

template<int dim>

void aspect::BoundaryConvectiveHeating::Function< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

Member Data Documentation

§ boundary_convective_heating_function

template<int dim>

Functions::ParsedFunction<dim> aspect::BoundaryConvectiveHeating::Function< dim >::boundary_convective_heating_function

private

A function object representing the boundary convective heating.

Definition at line 86 of file function.h.

§ coordinate_system

template<int dim>

Utilities::Coordinates::CoordinateSystem aspect::BoundaryConvectiveHeating::Function< dim >::coordinate_system

private

The coordinate representation to evaluate the function. Possible choices are depth, cartesian and spherical.

Definition at line 92 of file function.h.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/boundary_convective_heating/function.h
