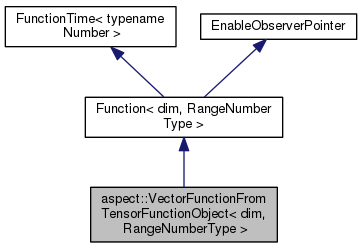

Inheritance diagram for aspect::VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >:

Public Member Functions
	VectorFunctionFromTensorFunctionObject (const std::function< Tensor< 1, dim, RangeNumberType >(const Point< dim > &)> &tensor_function_object, const unsigned int selected_component=0, const unsigned int n_components=dim)

virtual	~VectorFunctionFromTensorFunctionObject () override=default

virtual RangeNumberType	value (const Point< dim > &p, const unsigned int component=0) const override

virtual void	vector_value (const Point< dim > &p, Vector< RangeNumberType > &values) const override

virtual void	vector_value_list (const std::vector< Point< dim >> &points, std::vector< Vector< RangeNumberType >> &value_list) const override

Public Member Functions inherited from Function< dim, RangeNumberType >
	Function (const unsigned int n_components=1, const time_type initial_time=0.0)

	Function (const Function &f)=default

virtual	~Function () override=0

Function &	operator= (const Function &f)

virtual void	value_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const

virtual void	vector_value_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const

virtual void	vector_values (const std::vector< Point< dim > > &points, std::vector< std::vector< RangeNumberType > > &values) const

virtual Tensor< 1, dim, RangeNumberType >	gradient (const Point< dim > &p, const unsigned int component=0) const

virtual void	vector_gradient (const Point< dim > &p, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients) const

virtual void	gradient_list (const std::vector< Point< dim > > &points, std::vector< Tensor< 1, dim, RangeNumberType > > &gradients, const unsigned int component=0) const

virtual void	vector_gradients (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const

virtual void	vector_gradient_list (const std::vector< Point< dim > > &points, std::vector< std::vector< Tensor< 1, dim, RangeNumberType > > > &gradients) const

virtual RangeNumberType	laplacian (const Point< dim > &p, const unsigned int component=0) const

virtual void	vector_laplacian (const Point< dim > &p, Vector< RangeNumberType > &values) const

virtual void	laplacian_list (const std::vector< Point< dim > > &points, std::vector< RangeNumberType > &values, const unsigned int component=0) const

virtual void	vector_laplacian_list (const std::vector< Point< dim > > &points, std::vector< Vector< RangeNumberType > > &values) const

virtual SymmetricTensor< 2, dim, RangeNumberType >	hessian (const Point< dim > &p, const unsigned int component=0) const

virtual void	vector_hessian (const Point< dim > &p, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values) const

virtual void	hessian_list (const std::vector< Point< dim > > &points, std::vector< SymmetricTensor< 2, dim, RangeNumberType > > &values, const unsigned int component=0) const

virtual void	vector_hessian_list (const std::vector< Point< dim > > &points, std::vector< std::vector< SymmetricTensor< 2, dim, RangeNumberType > > > &values) const

virtual std::size_t	memory_consumption () const

Number	get_time () const

virtual void	set_time (const Number new_time)

virtual void	advance_time (const Number delta_t)

void	serialize (Archive &ar, const unsigned int version)

unsigned int	n_subscriptions () const

unsigned int	n_subscriptions () const

void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

Public Member Functions inherited from FunctionTime< typename Number >
	FunctionTime (const Number initial_time=Number(0.0))

virtual	~FunctionTime ()=default

Number	get_time () const

Public Member Functions inherited from EnableObserverPointer
	EnableObserverPointer ()

	EnableObserverPointer (const EnableObserverPointer &)

	EnableObserverPointer (EnableObserverPointer &&) noexcept

virtual	~EnableObserverPointer ()

EnableObserverPointer &	operator= (const EnableObserverPointer &)

EnableObserverPointer &	operator= (EnableObserverPointer &&) noexcept

void	serialize (Archive &ar, const unsigned int version)

unsigned int	n_subscriptions () const

void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

unsigned int	n_subscriptions () const

void	list_subscribers (StreamType &stream) const

void	list_subscribers () const

Private Attributes
const std::function< Tensor< 1, dim, RangeNumberType >const Point< dim > &)>	tensor_function_object

const unsigned int	selected_component

Additional Inherited Members
Public Types inherited from Function< dim, RangeNumberType >
typedef typename FunctionTime< typename numbers::NumberTraits< RangeNumberType >::real_type >::time_type	time_type

Public Types inherited from FunctionTime< typename Number >
typedef Number	time_type

Static Public Member Functions inherited from Function< dim, RangeNumberType >
static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Static Public Member Functions inherited from EnableObserverPointer
static ::ExceptionBase &	ExcInUse (int arg1, std::string arg2, std::string arg3)

static ::ExceptionBase &	ExcNoSubscriber (std::string arg1, std::string arg2)

Public Attributes inherited from Function< dim, RangeNumberType >
const unsigned int	n_components

Static Public Attributes inherited from Function< dim, RangeNumberType >
static constexpr unsigned int	dimension

Detailed Description

template<int dim, typename RangeNumberType = double>
class aspect::VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >

This class is built as a means of translating the Tensor<1,dim, RangeNumberType> values produced by function objects that for a given point return a tensor, and returning them as a multiple component version of the same thing as a Vector for use in, for example, the VectorTools::interpolate or the many other functions taking Function objects. It allows the user to place the desired components into an n_components long vector starting at the selected_component location in that vector and have all other components be 0.

For example: Say you created a function object that returns the gravity (here, a radially inward pointing vector of magnitude 9.81):

  const auto gravity
    = [](const Point<dim> &p) -> Tensor<1,dim> { return -9.81 * (p /
p.norm()); }

and you want to interpolate this onto your mesh using the VectorTools::interpolate function, with a finite element for the DoFHandler object has 3 copies of a finite element with dim components, for a total of 3*dim components. To interpolate onto that DoFHandler, you need an object of type Function that has 3*dim vector components. Creating such an object from the existing gravity object is done using this piece of code:

VectorFunctionFromTensorFunctionObject<dim, RangeNumberType>

gravity_vector_function(gravity, 0, 3*dim);

where the dim components of the gravity function are placed into the first dim components of the function object.

Definition at line 292 of file compat.h.

Constructor & Destructor Documentation

§ VectorFunctionFromTensorFunctionObject()

template<int dim, typename RangeNumberType>

VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::VectorFunctionFromTensorFunctionObject	(	const std::function< Tensor< 1, dim, RangeNumberType >(const Point< dim > &)> &	tensor_function_object,
		const unsigned int	selected_component = `0`,
		const unsigned int	n_components = `dim`
	)

explicit

Given a function object that takes a Point and returns a Tensor<1,dim, RangeNumberType> value, convert this into an object that matches the Function<dim> interface.

By default, create a Vector object of the same size as tensor_function returns, i.e., with dim components.

Parameters

tensor_function_object	The TensorFunction that will form `dim` components of the resulting Vector Function object.
n_components	The total number of vector components of the resulting TensorFunction object. This clearly has to be at least `dim`.
selected_component	The first component that should be filled by the first argument. This should be such that the entire tensor_function fits inside the `n_component` length return vector.

Definition at line 371 of file compat.h.

§ ~VectorFunctionFromTensorFunctionObject()

template<int dim, typename RangeNumberType = double>

virtual aspect::VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::~VectorFunctionFromTensorFunctionObject ( )

overridevirtualdefault

This destructor is defined as virtual so as to coincide with all other aspects of class.

Member Function Documentation

§ value()

template<int dim, typename RangeNumberType >

RangeNumberType VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::value	(	const Point< dim > &	p,
		const unsigned int	component = `0`
	)		const

inlineoverridevirtual

Return a single component of a vector-valued function at a given point.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 389 of file compat.h.

§ vector_value()

template<int dim, typename RangeNumberType>

void VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::vector_value	(	const Point< dim > &	p,
		Vector< RangeNumberType > &	values
	)		const

inlineoverridevirtual

Return all components of a vector-valued function at a given point.

values shall have the right size beforehand, i.e. n_components.

Reimplemented from Function< dim, RangeNumberType >.

Definition at line 414 of file compat.h.

§ vector_value_list()

template<int dim, typename RangeNumberType>

void VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::vector_value_list	(	const std::vector< Point< dim >> &	points,
		std::vector< Vector< RangeNumberType >> &	value_list
	)		const

overridevirtual

Return all components of a vector-valued function at a list of points.

value_list shall be the same size as points and each element of the vector will be passed to vector_value() to evaluate the function

Member function vector_value_list is the interface for giving a list of points (vector<Point<dim>>) of which to evaluate using the vector_value member function. Again, this function is written so as to not replicate the function definition but passes each point on to vector_value to be evaluated.

Definition at line 447 of file compat.h.

Member Data Documentation

§ tensor_function_object

template<int dim, typename RangeNumberType = double>

const std::function<Tensor<1, dim, RangeNumberType>const Point<dim> &)> aspect::VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::tensor_function_object

private

The TensorFunction object which we call when this class's vector_value() or vector_value_list() functions are called.

Definition at line 357 of file compat.h.

§ selected_component

template<int dim, typename RangeNumberType = double>

const unsigned int aspect::VectorFunctionFromTensorFunctionObject< dim, RangeNumberType >::selected_component

private

The first vector component whose value is to be filled by the given TensorFunction. The values will be placed in components selected_component to selected_component+dim-1 for a TensorFunction<1,dim, RangeNumberType> object.

Definition at line 365 of file compat.h.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/compat.h
